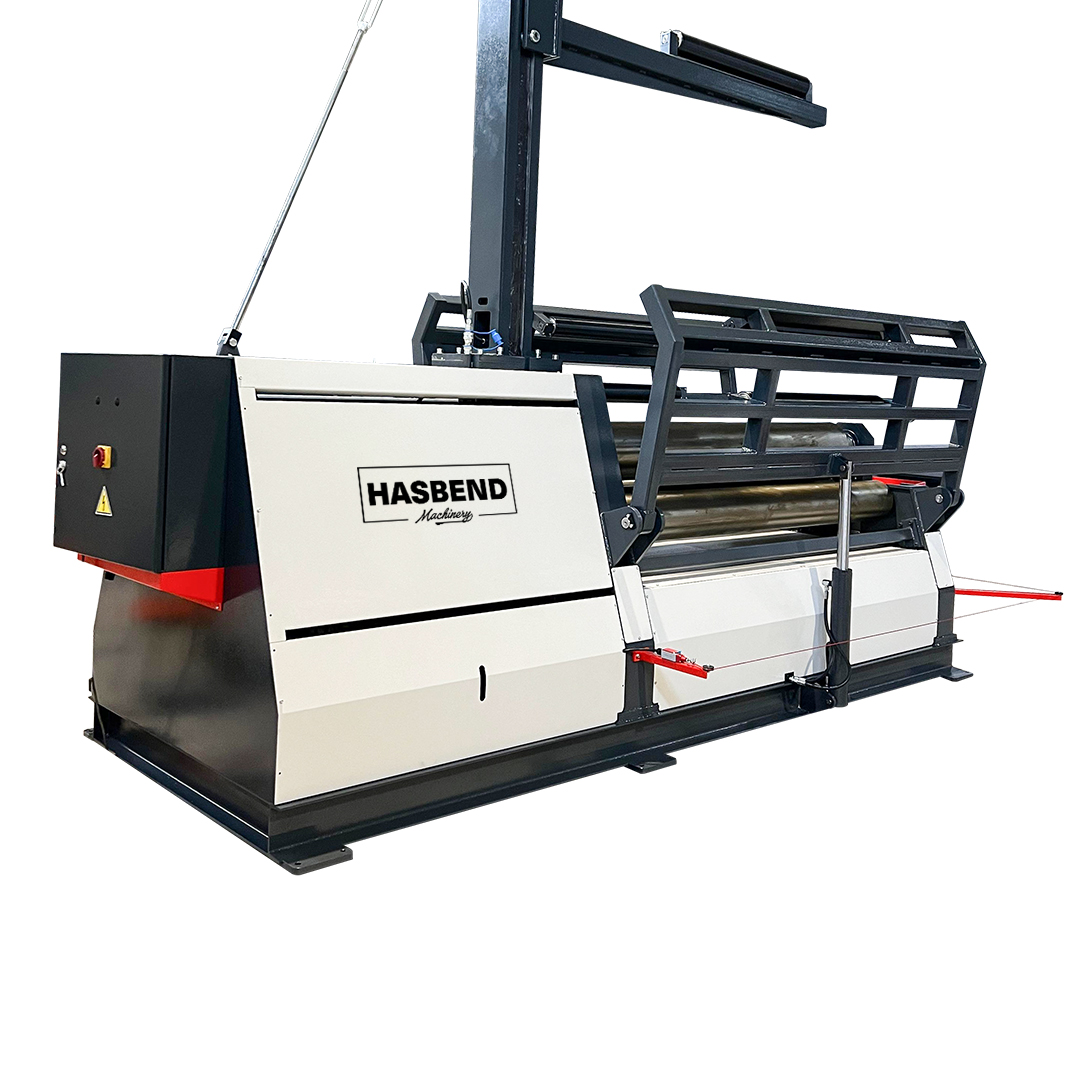

CB4-H 4 Toplu Hidrolik Silindir Makinesi

CB4-H 4 Toplu Hidrolik Silindir Makinesi

Kodu: CB4-H

MODEL	Çalışma Boyu	Kıvırma Kapasitesi	Ön Kıvırma Kapasitesi	Üst ve Alt Top Çapları	Yan Top Çapları	Motor Gücü	Uzunluk	Genişlik	Yükseklik	Ağırlık
	mm	mm	mm	Ømm	Ømm	kW	mm	mm	mm	kg	Min Ø: Roll Ø x 3
CB4-H 2000x160	2000	6	4	160	140	4 kW	3600	1300	1200	4000
CB4-H 2000x180	2000	8	6	180	150	5,5 kW	4100	1600	1450	4250
CB4-H 2000x200	2000	10	8	200	180	7,5 kW	4200	1600	1450	5660
CB4-H 2000x220	2000	13	10	220	180	7,5 kW	4200	1600	1450	5100
CB4-H 2000x255	2000	16	13	255	210	11 kW	4200	1600	1470	5750
CB4-H 2000x275	2000	20	16	275	220	15 kW	4300	1625	1830	8375
CB4-H 2000x310	2000	25	20	310	240	18,5 kW	4300	1625	1830	9750
CB4-H 2000x340	2000	30	25	340	250	22 kW	4650	2050	1950	12000
CB4-H 2000x385	2000	40	30	385	290	30 kW	4800	2250	2000	16000
CB4-H 2000x400	2000	45	35	400	300	37 kW	4900	2350	2250	17000
CB4-H 2000x460	2000	50	40	460	350	37 kW	5320	2600	2310	25000
CB4-H 2000x500	2000	55	45	500	400	45 kW	5550	2900	2800	33500
CB4-H 2000x540	2000	60	50	540	450	55 kW	5700	3050	3050	37500
CB4-H 2500x180	2500	6	4	180	150	5,5 kW	4600	1600	1450	4700
CB4-H 2500x200	2500	8	6	200	180	7,5 kW	4700	1600	1450	6020
CB4-H 2500x220	2500	10	8	220	180	7,5 kW	4700	1600	1450	6000
CB4-H 2500x255	2500	13	10	255	210	11 kW	4700	1600	1470	6600
CB4-H 2500x275	2500	16	13	275	220	15 kW	4800	1625	1830	9025
CB4-H 2500x310	2500	20	16	310	240	18,5 kW	4800	1625	1830	11000
CB4-H 2500x340	2500	25	20	340	250	22 kW	5100	2050	1950	13500
CB4-H 2500x385	2500	30	25	385	290	30 kW	5300	2250	2000	18000
CB4-H 2500x400	2500	40	30	400	300	37 kW	5400	2350	2250	19500
CB4-H 2500x460	2500	45	35	460	350	37 kW	5850	2600	2310	29000
CB4-H 2500x500	2500	50	40	500	400	45 kW	6050	2900	2800	38000
CB4-H 2500x540	2500	55	45	540	450	55 kW	6200	3050	3050	46000
CB4-H 3000x200	3000	6	4	200	180	7,5 kW	5200	1600	1450	6500
CB4-H 3000x220	3000	8	6	220	180	7,5 kW	5300	1600	1450	7100
CB4-H 3000x255	3000	10	8	255	210	11 kW	5300	1600	1470	7600
CB4-H 3000x275	3000	13	10	275	220	15 kW	5300	1625	1830	10395
CB4-H 3000x310	3000	16	13	310	240	22 kW	5500	1625	1830	13000
CB4-H 3000x340	3000	20	16	340	250	22 kW	5800	2050	1950	18750
CB4-H 3000x385	3000	25	20	385	290	30 kW	5900	2300	2100	20000
CB4-H 3000x400	3000	35	25	400	300	37 kW	6000	2350	2250	22100
CB4-H 3000x460	3000	40	33	460	350	37 kW	6550	2600	2310	32000
CB4-H 3000x500	3000	45	35	500	400	45 kW	6550	2900	2800	41000
CB4-H 3000x500	3000	50	40	540	450	55 kW	6900	3050	3050	51000
